This is the correct track for use with the GREYHOUND available only from CHAPMAN
It can be supplied in Hollywood (818) 764-6726 or Orlando 888-337-8253
ask specifically for:

"ChapmanPrecision Tubular-Aluminum Track"
Straights and curves can be combined in any order.

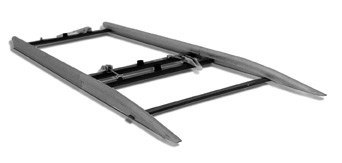

Starter Ramp 2’ (61 cm) Section
Item #1090
7 lbs 3.2 kg

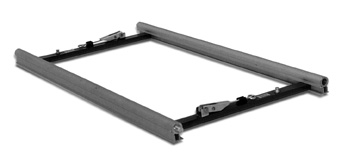

4’ (1.2 m) Section
Item #1083
13.5 lbs 6 kg

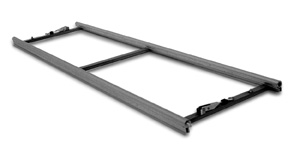

8’ (2.4 m) Section
Item #1082
24 lbs 10.9 kg

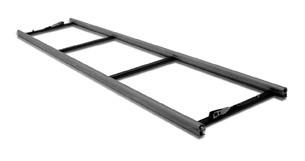

10’ (3 m) Section
Item #1089
28 lbs 13.2 kg

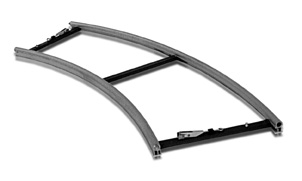

45° Curved
Item #1087
21.5 lbs 9.6 kg

• Outside Diameter = 20’ (6.1 m)

This is the LARGEST CURVE AVAILABLE . Eight sections required for 360 degrees





90° Curved
Item #1084
26 lbs 11.8 kg

• Outside Diameter = 14’ (4.3 m)
This is the SMALLEST CURVE AVAILABLE . Four sections required for 360 degrees
